Arduino - DHT22 - OLED

En este tutorial, vamos a aprender cómo leer la temperatura y la humedad del módulo DHT22 y mostrarlas en una pantalla OLED.

Acerca de la pantalla OLED, sensor de temperatura y humedad DHT22

Si no sabes nada sobre la pantalla OLED y el sensor de temperatura y humedad DHT22 (disposición de pines, cómo funciona, cómo programar ...), apréndelos en los siguientes tutoriales:

Diagrama de Cableado

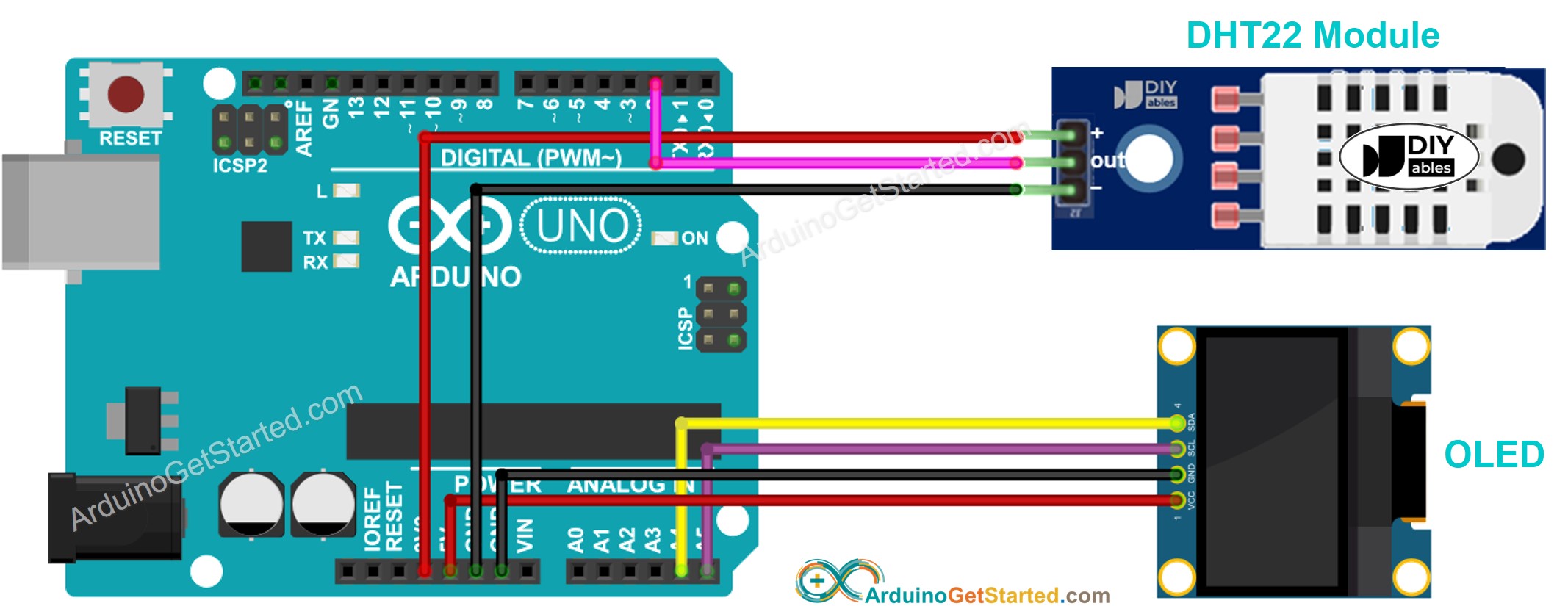

Diagrama de cableado del módulo OLED para Arduino DHT22

This image is created using Fritzing. Click to enlarge image

Para un proyecto duradero, las borneras de tornillo sujetan los cables mejor que los cables jumper. Solo añade un Proto Screw Terminal Block Shield o un Screw Shield V2 al Arduino. Mira el diagrama de abajo para la versión con screw shield.

Diagrama de cableado del módulo OLED para Arduino DHT22 (Screw Shield V2)

This image is created using Fritzing. Click to enlarge image

Código de Arduino - Sensor DHT22 - OLED

/* * Este código de Arduino fue desarrollado por es.newbiely.com * Este código de Arduino se proporciona al público sin ninguna restricción. * Para tutoriales completos y diagramas de cableado, visite: * https://es.newbiely.com/tutorials/arduino/arduino-dht22-oled */ #include <Wire.h> #include <Adafruit_GFX.h> #include <Adafruit_SSD1306.h> #include <DHT.h> #define SCREEN_WIDTH 128 // OLED display width, in pixels #define SCREEN_HEIGHT 64 // OLED display height, in pixels #define DHT22_PIN 2 // pin connected to DHT22 sensor Adafruit_SSD1306 oled(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1); // create SSD1306 display object connected to I2C DHT dht22(DHT22_PIN, DHT22); String temperature; String humidity; void setup() { Serial.begin(9600); // initialize OLED display with address 0x3C for 128x64 if (!oled.begin(SSD1306_SWITCHCAPVCC, 0x3C)) { Serial.println(F("SSD1306 allocation failed")); while (true); } delay(2000); // wait for initializing oled.clearDisplay(); // clear display oled.setTextSize(3); // text size oled.setTextColor(WHITE); // text color oled.setCursor(0, 10); // position to display dht22.begin(); // initialize DHT22 the temperature and humidity sensor temperature.reserve(10); // to avoid fragmenting memory when using String humidity.reserve(10); // to avoid fragmenting memory when using String } void loop() { float humi = dht22.readHumidity(); // read humidity float tempC = dht22.readTemperature(); // read temperature // check if any reads failed if (isnan(humi) || isnan(tempC)) { temperature = "Failed"; humidity = "Failed"; } else { temperature = String(tempC, 1); // one decimal places temperature += char (247); // degree character temperature += "C"; humidity = String(humi, 1); // one decimal places humidity += "%"; Serial.print(tempC); // print to Serial Monitor Serial.print("°C | " ); // print to Serial Monitor Serial.print(humi); // print to Serial Monitor Serial.println("%"); // print to Serial Monitor } oledDisplayCenter(temperature, humidity); // display temperature and humidity on OLED } void oledDisplayCenter(String temperature, String humidity) { int16_t x1; int16_t y1; uint16_t width_T; uint16_t height_T; uint16_t width_H; uint16_t height_H; oled.getTextBounds(temperature, 0, 0, &x1, &y1, &width_T, &height_T); oled.getTextBounds(temperature, 0, 0, &x1, &y1, &width_H, &height_H); // display on horizontal and vertical center oled.clearDisplay(); // clear display oled.setCursor((SCREEN_WIDTH - width_T) / 2, SCREEN_HEIGHT/2 - height_T - 5); oled.println(temperature); // text to display oled.setCursor((SCREEN_WIDTH - width_H) / 2, SCREEN_HEIGHT/2 + 5); oled.println(humidity); // text to display oled.display(); }

Pasos R\u00e1pidos

  • Abre el IDE de Arduino en tu PC.
  • Navega al icono de Bibliotecas en la barra izquierda del IDE de Arduino.
  • Busca “SSD1306”, luego encuentra la biblioteca SSD1306 de Adafruit
  • Haz clic en el botón Instalar para instalar la biblioteca.
Biblioteca OLED para Arduino
  • Se le pedirá que instale algunas otras dependencias de bibliotecas.
  • Haga clic en el botón Instalar Todo para instalar todas las dependencias de la biblioteca.
Librería de sensores de Arduino Adafruit GFX
  • Buscar “DHT”, luego encuentra la biblioteca de sensores DHT de Adafruit
  • Haz clic en el botón Instalar para instalar la biblioteca.
Biblioteca de sensores DHT para Arduino
  • Se le pedirá que instale algunas dependencias de otras bibliotecas.
  • Haga clic en el botón Instalar todo para instalar todas las dependencias de la biblioteca.
Biblioteca de sensores unificados de Adafruit para Arduino
  • Copia el código anterior y ábrelo con Arduino IDE
  • Haz clic en el botón Subir en Arduino IDE para subir el código a Arduino
  • Coloca el sensor en agua caliente y fría, o sujétalo con tu mano
  • Mira el resultado en el OLED y en el Monitor Serial

※ Nota:

El código About alinea automáticamente el texto horizontal y verticalmente en la pantalla OLED.
